BOND-SP-218
Lighting color: monochrome /RGB/RGBW
Optional: Light source
Luminous Angle: 15°/30°/45°/60°
Lamp body material: aluminum
Mask material: tempered glass
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical appliance Class: Class I/Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Quantity | Pixel | Rated voltage | Rated power |
| 常亮 | 6840lm | 单色 | P7 | OSRAM | 36 | - | AC220V | 72W |
| 常亮 | 8080lm | 单色 | P7 | OSRAM | 36 | - | AC220V | 85W |
| DMX512 | 8470lm | RGB | 3535 | SAN'AN | 36 | - | AC220V | 120W |
| DMX512 | 8950lm | RGBW | 3535 | SAN'AN | 36 | - | AC220V | 120W |
| 常亮 | 5700lm | 单色 | 3030 | OSRAM | 12 | - | AC220V | 60W |
| DMX512 | 7060lm | RGBW | 3535 | SAN'AN | 12 | - | AC220V | 100W |
| DMX512 | 7460lm | RGBW | 3535 | SAN'AN | 12 | - | AC220V | 100W |
Product size drawing
Light distribution

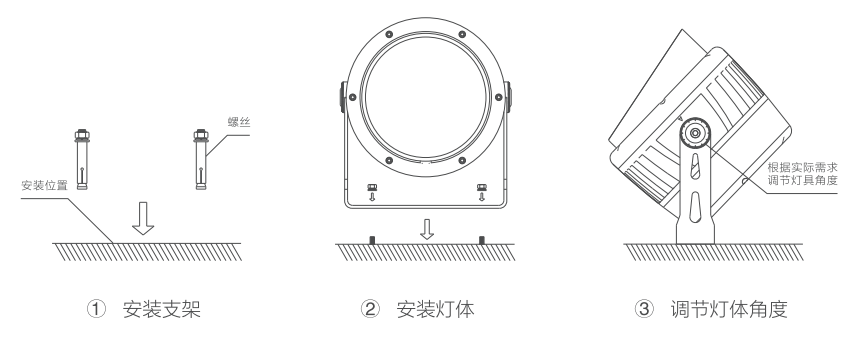

Product installation
