BOND-LL-U48A
Lighting color: monochrome /RGB/RGBW
Optional: Light source
Luminous Angle: 120°
Lamp body material: aluminum
Mask material: PC
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical grade: Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Length | Quantity | Pixel | Rated voltage | Rated power |
| Steady on | 700lm | Monochrome | 2835 | OSRAM | 1002mm | 48 | - | DC24V | 12W |
| Steady on | 350lm | Monochrome | 2835 | OSRAM | 502mm | 24 | - | DC24V | 6W |
| Steady on | 210lm | Monochrome | 2835 | OSRAM | 302mm | 12 | - | DC24V | 3.5W |
| DMX512 | 640lm | Monochrome | 2835 | OSRAM | 1002mm | 48 | 8 | DC24V | 10W |
| DMX512 | 310lm | Monochrome | 2835 | OSRAM | 502mm | 24 | 4 | DC24V | 5W |
| DMX512 | 190lm | Monochrome | 2835 | OSRAM | 252mm | 12 | 2 | DC24V | 2W |
| DMX512 | 245lm | RGB | 5050 | EPISTAR | 1002mm | 48 | 8 | DC24V | 10W |
| DMX512 | 123lm | RGB | 5050 | EPISTAR | 502mm | 24 | 4 | DC24V | 5W |
| DMX512 | 70lm | RGB | 5050 | EPISTAR | 252mm | 12 | 2 | DC24V | 2.5W |
| DMX512 | 320lm | RGBW | 5050 | EPISTAR | 1002mm | 48 | 8 | DC24V | 13W |
| DMX512 | 160lm | RGBW | 5050 | EPISTAR | 502mm | 24 | 4 | DC24V | 6.5W |
| DMX512 | 80lm | RGBW | 5050 | EPISTAR | 252mm | 12 | 2 | DC24V | 3W |

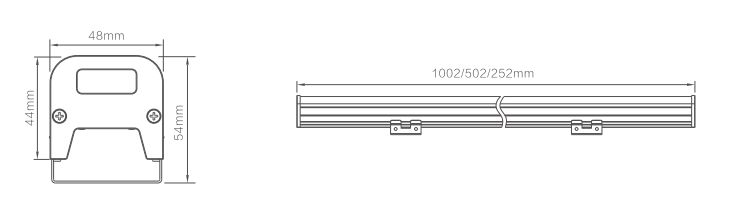

Product size drawing
Light distribution
Product installation
