Product details

Line Light

BOND-LL-2026

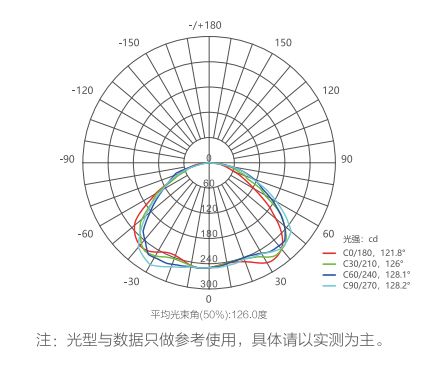

Lighting color: Monochrome /RGB Optional configuration: light source, support, light shade Luminous Angle: 120° Lamp body material: aluminum Mask material: PC Control mode: ON/OF, DMX512 Operating temperature: -30°C ~ 55C Protection level: IP66 Electrical grade: Class III

产品详情

Parameter list

Control mode	Luminous flux	Light color	Specification	Chip	Length	Quantity	Pixel	Rated voltage	Rated power
Steady on	830lm	Monochrome	2835	OSRAM	1000mm	48	-	DC24V	12W
Steady on	420lm	Monochrome	2835	OSRAM	500mm	24	-	DC24V	6W
Steady on	210lm	Monochrome	2835	OSRAM	250mm	12	-	DC24V	3W
DMX512	690lm	Monochrome	2835	OSRAM	1000mm	48	8	DC24V	10W
DMX512	350lm	Monochrome	2835	OSRAM	500mm	24	4	DC24V	5W
DMX512	180lm	Monochrome	2835	OSRAM	250mm	12	2	DC24V	2.5W
DMX512	500lm	RGB	5050	EPISTAR	1000mm	48	8	DC24V	10W
DMX512	250lm	RGB	5050	EPISTAR	500mm	24	4	DC24V	5W
DMX512	130lm	RGB	5050	EPISTAR	250mm	12	2	DC24V	2.5W
