BOND-LL-2832A
Lighting color: monochrome /RGB/RGBW
Optional configuration: light source, support
Luminous Angle: 120°
Lamp body material: aluminum
Mask material: PC
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical grade: Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Length | Quantity | Pixel | Rated voltage | Rated power |
| Steady on | 800lm | Monochrome | 2835 | OSRAM | 1000mm | 48 | - | DC24V | 12W |
| Steady on | 400lm | Monochrome | 2835 | OSRAM | 500mm | 24 | - | DC24V | 6W |
| Steady on | 200lm | Monochrome | 2835 | OSRAM | 250mm | 12 | - | DC24V | 3W |
| DMX512 | 670lm | Monochrome | 2835 | OSRAM | 1000mm | 48 | 8 | DC24V | 10W |
| DMX512 | 340lm | Monochrome | 2835 | OSRAM | 500mm | 24 | 4 | DC24V | 5W |
| DMX512 | 170lm | Monochrome | 2835 | OSRAM | 250mm | 12 | 2 | DC24V | 2.5W |
| DMX512 | 460lm | RGB | 5050 | EPISTAR | 1000mm | 48 | 8 | DC24V | 10W |
| DMX512 | 230lm | RGB | 5050 | EPISTAR | 500mm | 24 | 4 | DC24V | 5W |
| DMX512 | 120lm | RGB | 5050 | EPISTAR | 250mm | 12 | 2 | DC24V | 2.5W |
| DMX512 | 610lm | RGBW | 5050 | EPISTAR | 1000mm | 48 | 8 | DC24V | 13W |
| DMX512 | 300lm | RGBW | 5050 | EPISTAR | 500mm | 24 | 4 | DC24V | 6.5W |
| DMX512 | 160lm | RGBW | 5050 | EPISTAR | 250mm | 12 | 2 | DC24V | 3W |
Product size drawing

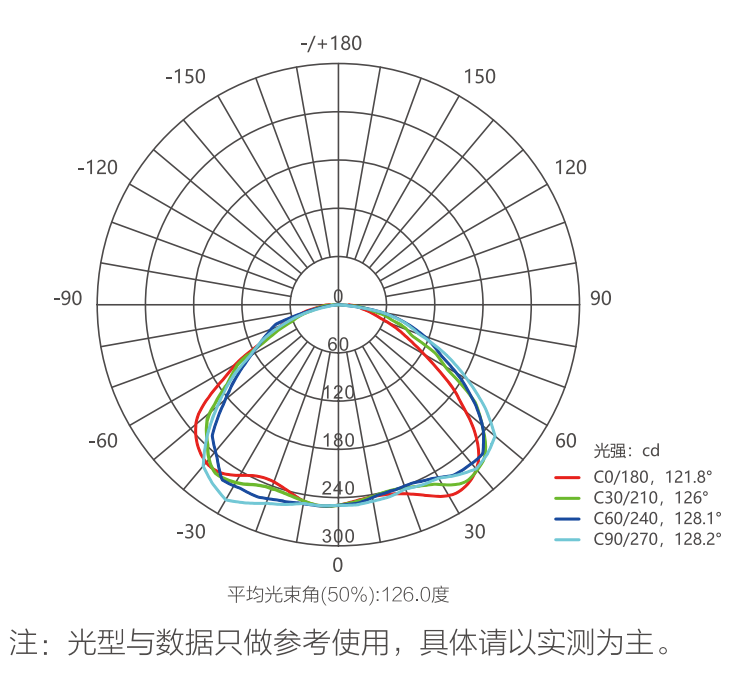

Light distribution
Product installation
