BOND-WW-2628
Lighting color: monochrome /RGB/RGBW
Optional configuration: light source, light mask
Luminous Angle: 10x60°
Lamp body material: aluminum
Mask material: aluminum
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical grade: Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Length | Quantity | Pixel | Rated voltage | Rated power |
| 常亮 | 1130lm | 单色 | 2835 | OSRAM | 1000mm | 24 | - | DC24V | 15W |
| 常亮 | 570lm | 单色 | 2835 | OSRAM | 500mm | 12 | - | DC24V | 7.5W |
| 常亮 | 280lm | 单色 | 2835 | OSRAM | 250mm | 6 | - | DC24V | 4W |
| DMX512 | 750lm | 单色 | 2835 | OSRAM | 1000mm | 48 | 8 | DC24V | 10W |
| DMX512 | 380lm | 单色 | 2835 | OSRAM | 500mm | 24 | 4 | DC24V | 5W |
| DMX512 | 190lm | 单色 | 2835 | OSRAM | 250mm | 12 | 2 | DC24V | 2.5W |
| DMX512 | 660lm | RGB | 5050 | EPISTAR | 1000mm | 48 | 8 | DC24V | 10W |
| DMX512 | 330lm | RGB | 5050 | EPISTAR | 500mm | 24 | 4 | DC24V | 5W |
| DMX512 | 160lm | RGB | 5050 | EPISTAR | 250mm | 12 | 2 | DC24V | 2.5W |
| DMX512 | 850lm | RGBW | 5050 | EPISTAR | 1000mm | 48 | 8 | DC24V | 13W |
| DMX512 | 430lm | RGBW | 5050 | EPISTAR | 500mm | 24 | 4 | DC24V | 6.5W |
| DMX512 | 210lm | RGBW | 5050 | EPISTAR | 250mm | 12 | 2 | DC24V | 2.5W |

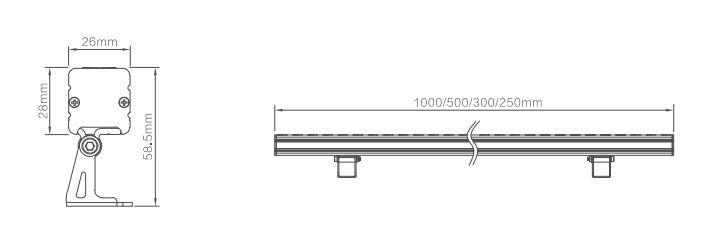

Product size drawing
Light distribution
Product installation
