BOND-PS-S100
Lighting color: monochrome /RGB/RGBW
Optional: Light source
Luminous Angle: 120°
Lamp body material: die-cast aluminum
Mask material: PC
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical grade: Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Quantity | Pixel | Rated voltage | Rated power |
| Steady on | 250lm | Monochrome | 2835 | OSRAM | 18 | - | DC24V | 3.2W |
| DMX512 | 250lm | Monochrome | 2835 | OSRAM | 18 | 1 | DC24V | 3.2W |
| DMX512 | 220lm | RGB | 5050 | EPISTAR | 18 | 1 | DC24V | 3.2W |
| DMX512 | 340lm | RGBW | 5050 | EPISTAR | 18 | 1 | DC15V | 4.8W |
Product size drawing
Light distribution

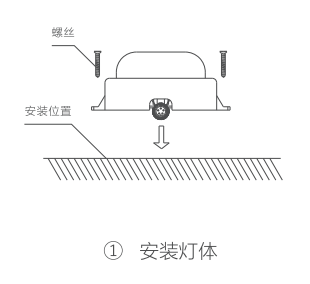

Product installation
