BOND-SP-S105
Lighting color: monochrome /RGB/RGBW
Optional: Light source
Luminous Angle: 15°/25°/30°/45°/60°
Lamp body material: die-cast aluminum
Mask material: tempered glass
Control mode: ON/OF, DMX512
Operating temperature: -30°C ~ 55C
Protection level: IP66
Electrical grade: Class III
产品详情
Parameter list
| Control mode | Luminous flux | Light color | Specification | Chip | Quantity | Pixel | Rated voltage | Rated power |
| Steady on | 2260lm | Monochrome | 3030 | OSRAM | 9 | - | AC220V | 24W |
| DMX512 | 2260lm | RGB | 3535 | SAN'AN | 9 | 1 | DC24V | 24W |
| DMX512 | 2260lm | RGBW | 3535 | SAN'AN | 9 | 1 | DC24V | 24W |
Product size drawing

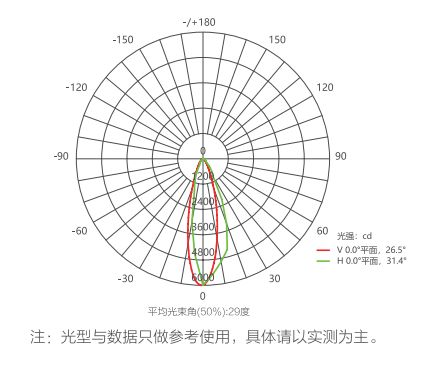

Light distribution

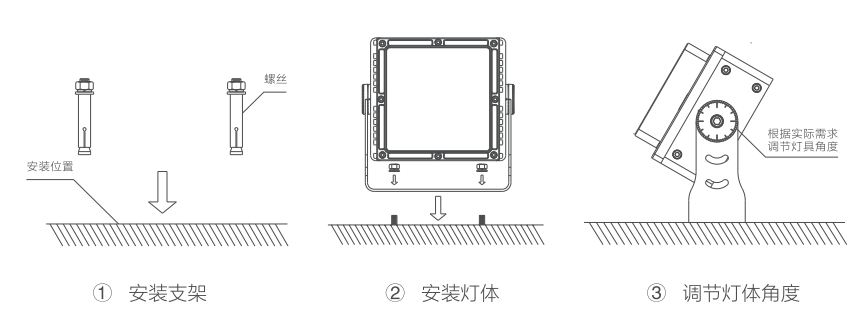

Product installation
