Product details

Line Light

Wall Washer Light

Point Light Source

LED Floodlight

Corrugated Lights

Control System

BOND-SP-S180
BOND-SP-S180
BOND-SP-S180
BOND-SP-S180
BOND-SP-S180
BOND-SP-S180

BOND-SP-S180

Lighting color: monochrome /RGB/RGBW Optional configuration: light source, light mask Luminous Angle: 15°/25°/30°/45°/60° Lamp body material: aluminum Mask material: tempered glass Control mode: ON/OF, DMX512 Operating temperature: -30°C ~ 55C Protection level: IP66 Electrical grade: Class III
Contact Us
产品详情

Parameter list



Control mode Luminous flux Light color Specification Chip Quantity Pixel Rated voltage Rated power
Steady on 5860lm Monochrome 3030 OSRAM 16 - AC220V 60W
Steady on 7130lm Monochrome 3030 OSRAM 36 - AC220V 72W
DMX512 5100lm RGB 3535 SAN'AN 36 1 DC24V 72W
DMX512 5100lm RGBW 3535 SAN'AN 36 1 DC24V 72W

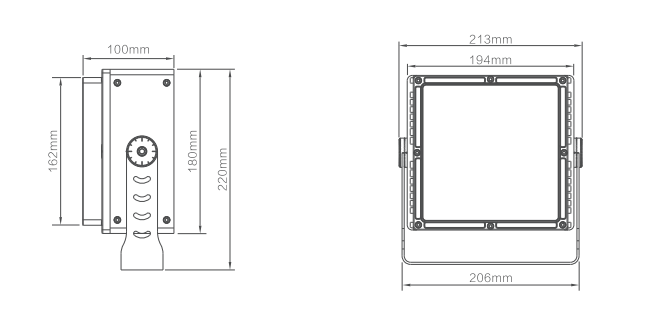

Product size drawing

11

Light distribution

11

Product installation

11
